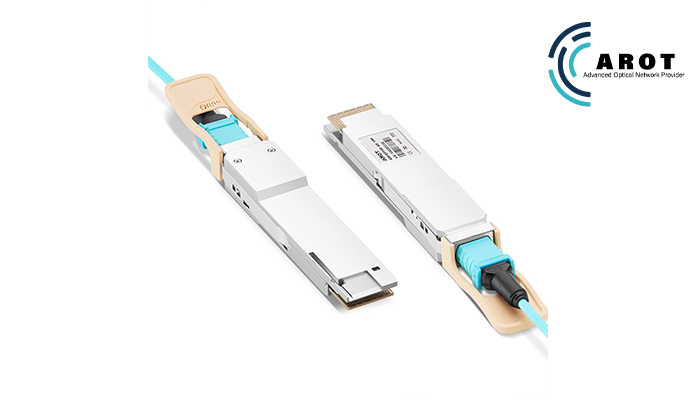

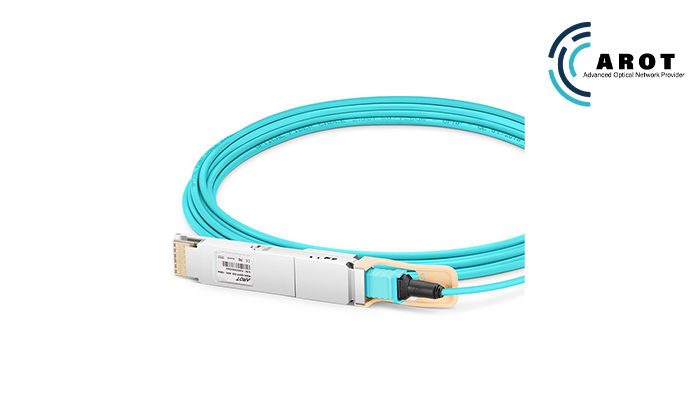

QDD-400G-A1 Compatible 400G QSFP-DD Active Optical Cable

The 400G QSFP-DD active optical cables are designed for use in 400 Gigabit Ethernet links over OM4 multimode fibers, and contain eight multi-mode fibers (MMF) optic transceivers per end, each operating at data rates of up to 53Gb/s. This active optical cable is compliant with IEEE 802.3cd, OIF-CEI-04.0, QSFP-DD MSA and QSFP-DD-CMIS-rev4p0.

This AOC is designed with ultra-low loss plates, square rings, dual 8-pair cables and iron shell extens construction for good mechanical properties, bendability and higher transmission bandwidth. Thin fiber cable enables maximum air flow cooling.They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirements in the data centers.

Compatible Brand

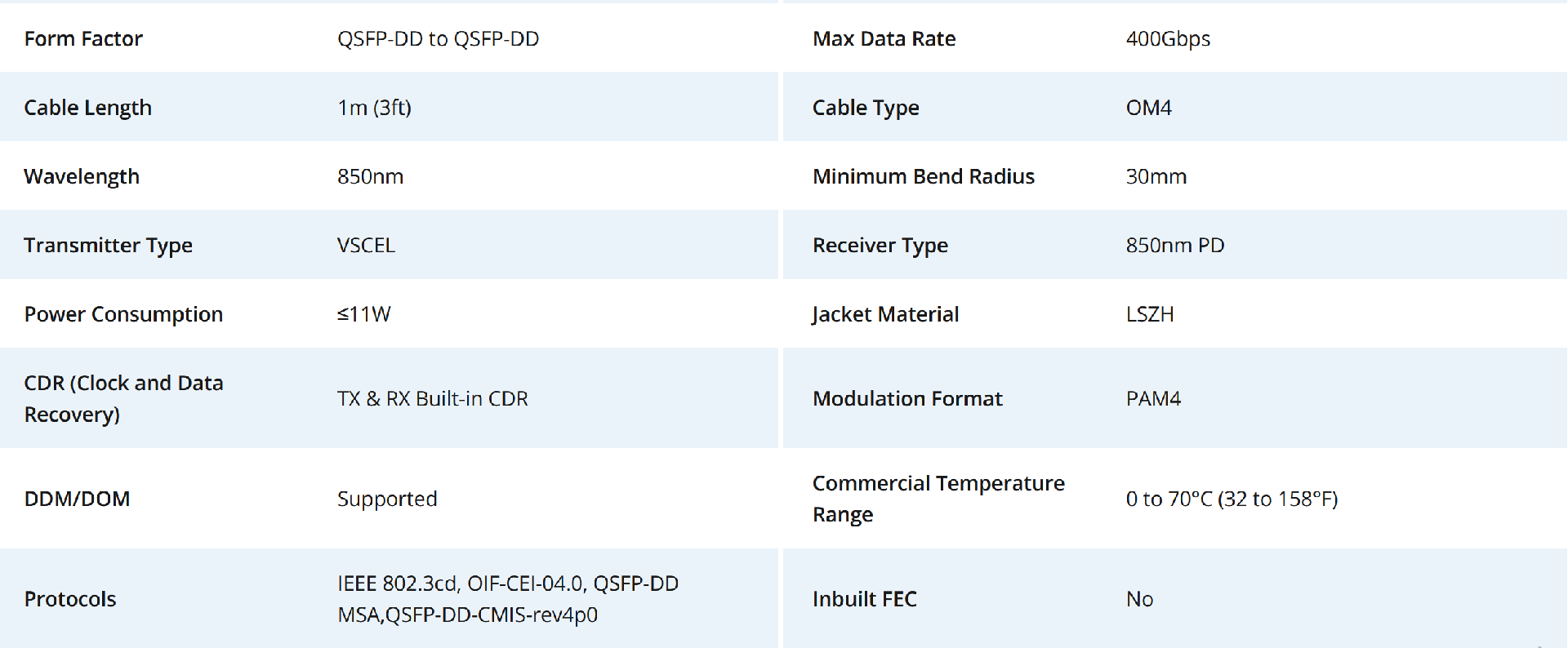

Product Details

Product Highlights :
Low power consumption < 10.5W per end
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 30mm for Flexible Routing
Simplifies the Patching and Offers a Cost-effective Way for Short Links
High-speed Electrical Compliant to IEEE 802.3cd
8x50G PAM4 Retimed 400GAUI-8 Electrical Interface
Hot Pluggable QSFP-DD MSA Compliant
Class 1 Laser Safety

400G AOC.png

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.


Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
