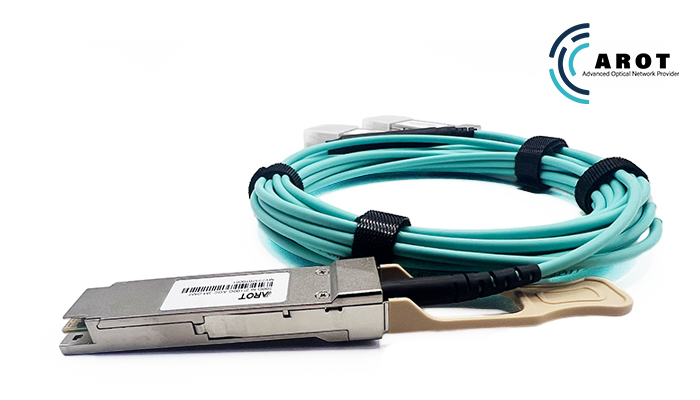

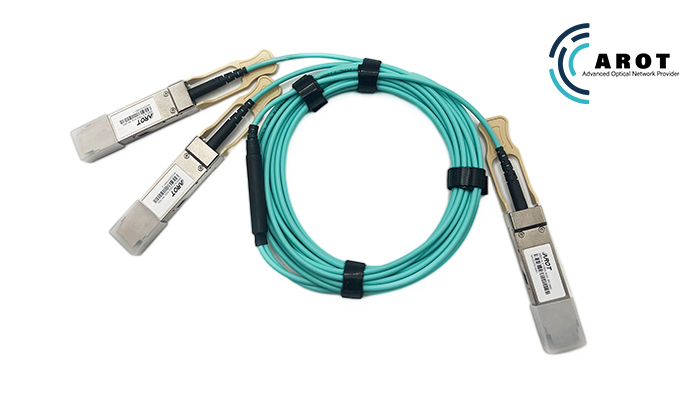

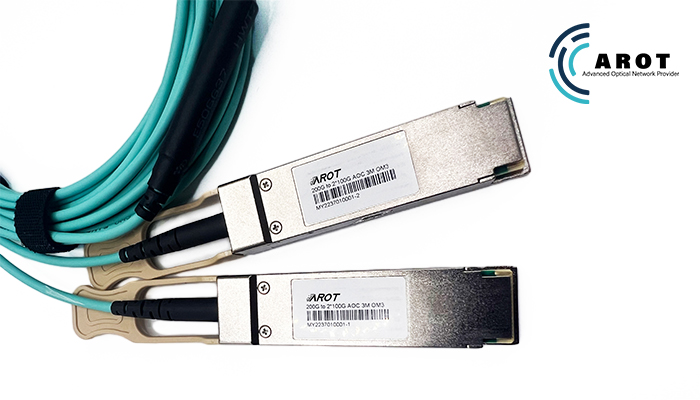

Q2Q56-200G-A1 Nvidia Mellanox compatible QSFP-DD to 2x100G QSFP28 Active Optical Breakout Cable for InfiniBand HDR and other Ethernet switches
200G QSFP-DD to 2x100G QSFP2 breakout Active Optical Cable operates over Multi-Mode Fiber (MMF). This breakout cable is compliant with QSFP-DD MSA V5.0, QSFP28 MSA, CMIS V4.0 and SFF-8636. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. It provides connectivity between system units with a 200GbE connector on one side and two separate 100GbE connectors on the other side and is suitable for Data Center Applications.
Compatible Brand
Product Details
Product Highlights :
High Performance Computing for IB HDR
Max. Power Consumption 2.5W (100G End), 4W (200G End)
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
Minimum Bend Radius 30mm for Flexible Routing
Supports 200G to 2x 100G Ethernet Interoperability
Simplifies the Patching and Offers a Cost-effective Way for Short Links
Hot Pluggable QSFP-DD and QSFP28 MSA Compliant
Class 1 FDA Laser Safety and RoHS Compliant
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
