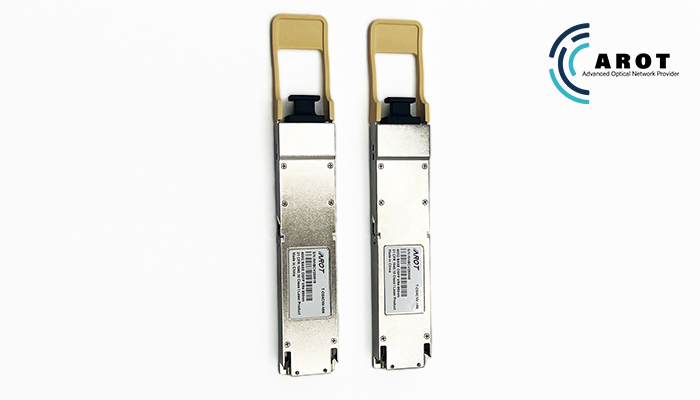

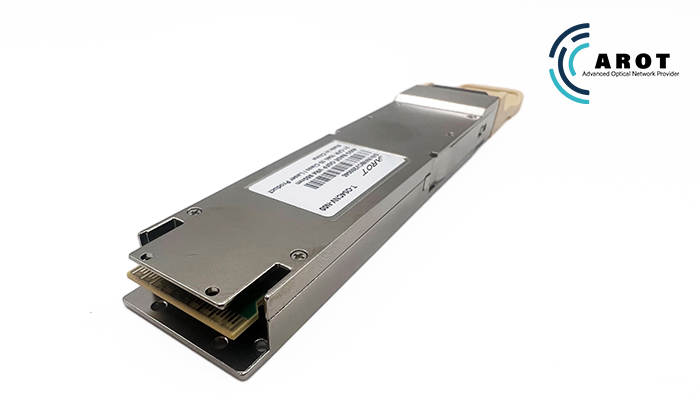

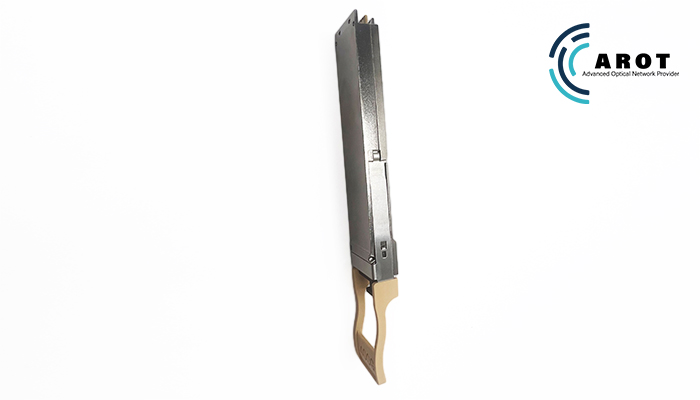

400G OSFP SR4 transceiver Compatible with Nvida Mellanox MMA4Z00-NS400 NDR IB InfiniBand

This product is an 400Gb/s Octal Small Form-factor Pluggable (OSFP) optical module without
top open fin designed for 50m with OM4 fiber optical communication applications. The
module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel
optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s.
Reversely, on the receiver side, the module converts 4 channels of parallel opticalsignals of
100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s
(PAM4) electrical output data.

Compatible Brand

Product Details


400G OSFP112 VR4 transceiver, MPO-12 APC interface, 850nm, up to 50m with OM4, Pull tab


Product Highlights:

OSFP form factor hot pluggable

CMIS compliance

4 parallel lanes of 100G-PAM4 electrical and optical parallel lanes

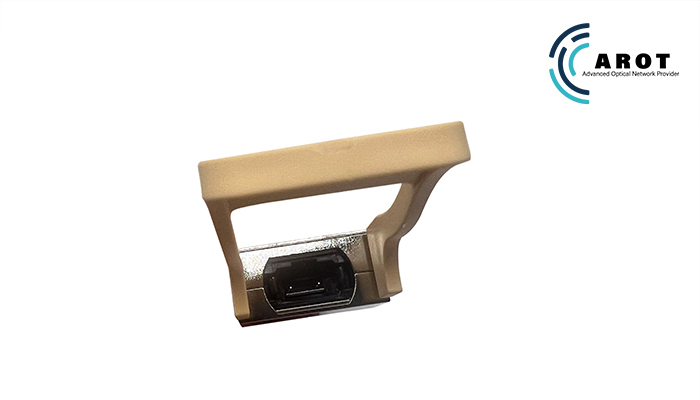

Optical port of MPO-12/APC

Up to 50m reach on multi-mode fiber OM4 and 30m on OM3 with FEC

9 Watts max

Case temperature range of 0°C to 70°C


Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.




CERTIFICATION ICON.jpg





Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
