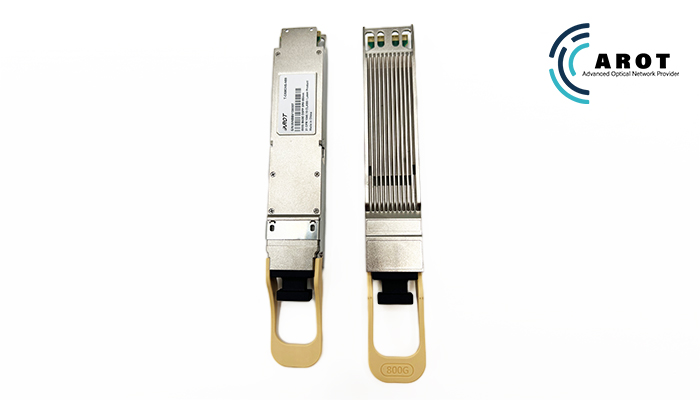

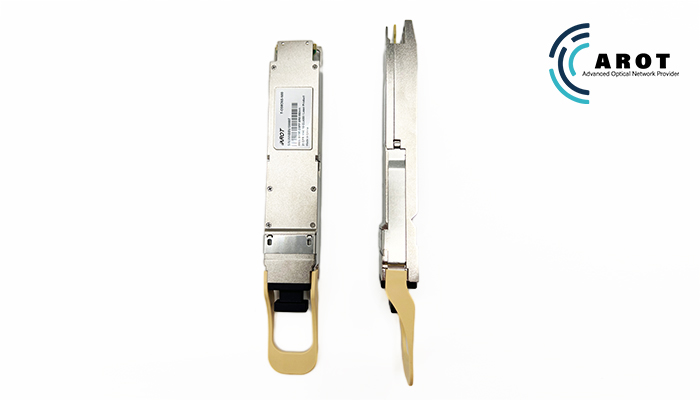

800G OSFP SR8 transceiver Compatible with Nvida Mellanox MMA4Z00-NS NDR IB InfiniBand

This product is an 800Gb/s Octal Small Form-factor Pluggable (OSFP) optical module with top
open fin designed for 100m with OM4 fiber optical communication applications. The module
converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical
signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s. Reversely,
on the receiver side, the module converts 8 channels of parallel optical signals of 100Gb/s
each channel for an aggregate data rate of 800Gb/s into 8 channels of 100Gb/s (PAM4)
electrical output data.

Compatible Brand

Product Details

800G OSFP112 SR8 transceiver, dual MPO-12 APC interface, 850nm, up to 100m with OM4, Top-open-fin, Pull tab

Product Highlights:

 OSFP form factor hot pluggable

 CMIS compliance

 8 parallel lanes of 100G-PAM4 electrical and optical parallel lanes

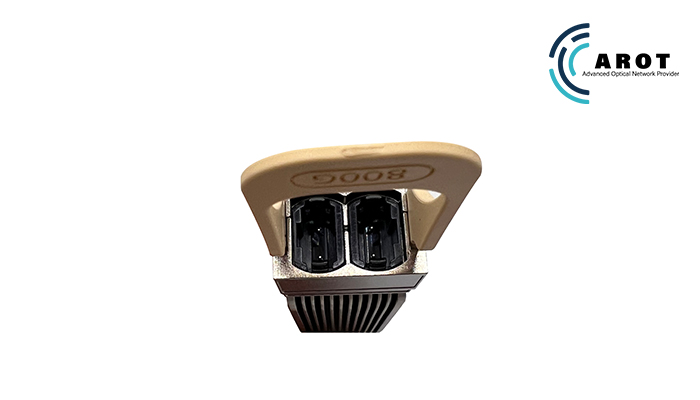

 Dual optical port of MPO-12/APC

 Top open fin

 Up to 100m reach on multi-mode fiber OM4 and 50m on OM3 with FEC

 14 Watts max

 Case temperature range of 0°C to 70°C

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.


Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
