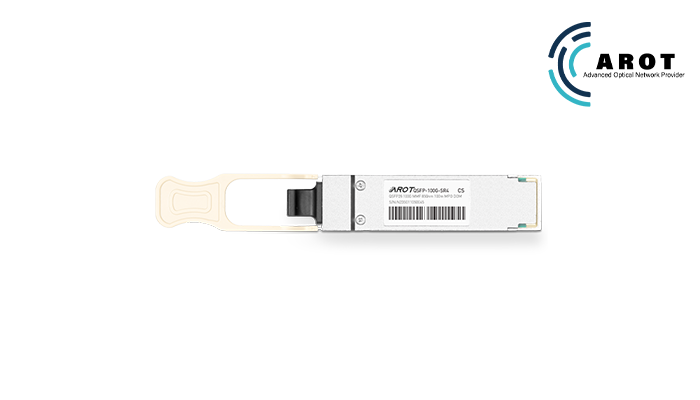

QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m DOM MTP/MPO-12 MMF Optical Transceiver Module

Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via a MTP/MPO-12 connector. This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Compatible Brand

Product Details



Product Highlights:
Built-in Macom Chip, and Max. Power Consumption 2.5W
Tested in Targeted Switches for Superior Performance, Quality, and Reliability
High-Speed Electrical Interface Compliant to IEEE 802.3bm
Support 100G to 4x25G Breakout Application
Hot Pluggable QSFP28 MSA Compliant
Class 1 FDA Laser Safety and RoHS Compliant
Digital Optical Monitoring Capability for Strong Diagnostic Capabilities



100g SR 4.png



Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.




CERTIFICATION ICON.jpg





Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
